12KIP Aluminum Shoring Frames

Hi-Lite’s 12KIP Aluminum Shoring Frames have provided great advantages to contractors around the world allowing them to do more with less. Here are some reasons why:

• No more than 1/3 the weight of the comparable load bearing steel frame.
• Capacity tested to safe working loads of up to 11,000 kg (24,000 lb or 106 KN) per frame with a safety factor of 2.5:1.
• Designed to replace traditional 20K steel frame shoring and other modular systems.
• Inter-bracing feature helps maintain full load capacity in high towers.
• Snap-on Jet Locks make erection and dismantling fast, easy and safe.
• Ledgers in one direction only, allow for efficient spacing of frames using cost effective cross bracing.

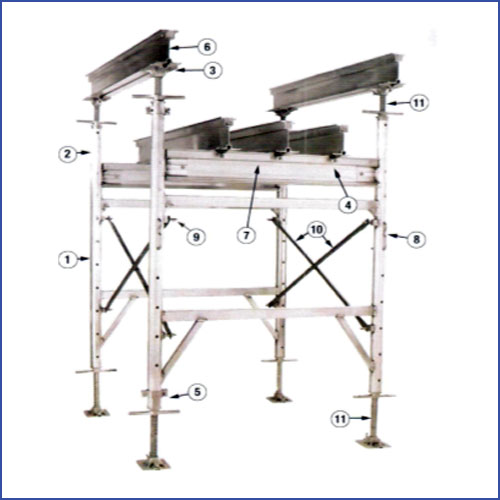

1. Frame
2. Extension Tube
3. Extension Tube Plate
4. Beam Clip with T-Head Bolt
5. Retaining Clamp
6. Aluminum Beam Stringer of Joist
7. Saddle Beam
8. Extension Tube Support Pin (U-Pin)
9. Jet Locks
10. Cross Braces
11. Screw Jack - Swivel or Fixed Base

Part No.:	Frames Specification	Weight
	Height x Width	Lbs	Kgs
12FM42	1.2m x 0.6m (4'x2')	16.5	7.5
12FM44	1.2m x 1.2m (4'x4')	19.8	9
12FM45	1.2m x 1.5m (4'x5')	21.5	9.8
12FM46	1.2m x 1.8m (4'x6')	23.2	10.5
12FM42	1.2m x 0.6m (5'x2')	21.8	9.9
12FM44	1.2m x 1.2m (5'x4')	26.8	12.2
12FM45	1.2m x 1.5m (5'x5')	29.3	13.3
12FM46	1.2m x 1.8m (5'x6')	31.8	14.4
12FM42	1.2m x 0.6m (6'x2')	25.7	11.7
12FM44	1.2m x 1.2m (6'x4')	30.8	14.0
12FM45	1.2m x 1.5m (6'x5')	33.3	15.1
12FM46	1.2m x 1.8m (6'x6')	35.8	16.2
12FM42	1.2m x 0.6m (8'x2')	34.0	15.4
12FM44	1.2m x 1.2m (8'x4')	40.7	18.5
12FM45	1.2m x 1.5m (8'x5')	44.1	20.0
12FM46	1.2m x 1.8m (8'x6')	47.5	21.5
