FORMWORK SYSTEM

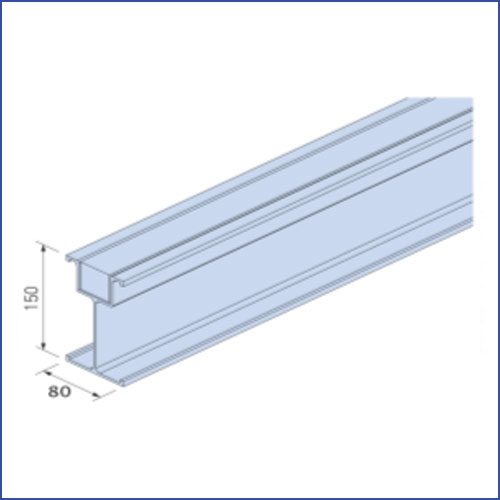

Aluminium T150 Beams
The use of aluminium over timber has great advantages. Aluminium is lighter and stronger than timber and therefore allows for larger assemblies of formwork, which in turn reduces the labour cost of fixing and erecting. The single-web T150 beams are supplied with timber inserts to allow for plywood to be fixed. The T150 is available for general use to suit all budgets.
Properties
| Weight | 3.161kg/m |
| Section Modulus Zxx | 46.745cmᶟ |
| Section Modulus Yxx | 11.352cmᶟ |
| Inertia yy | 45.41cm⁴ |
| Moment of Resistance | 6kN/m |
| Length (m) | Weight (kg) |
| per/LM | 3.35 |
