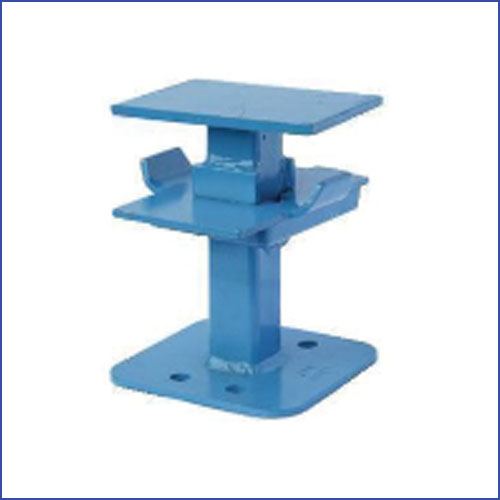

The quick action drophead supplied with nuts and bolts, is designed to fit on standard props or adaptors for T-LOCK scaffolding.
The primary head remains in contact with the concrete whilst the secondary head and its supporting wedge are released by a single hammer blow. The height of the drophead is 214mm and the striking distance allows the beams and panels to drop only 115mm for their safe removal.
Maximum load capacity: 40k
|Height (mm)||Head dimension (mm)||Weight (kg)|
|214||152 x 100||5.4|
