SCAFFOLDING COMPONENTS
Products & Services

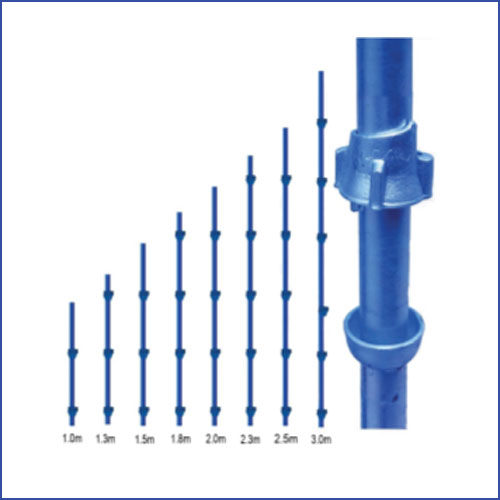

Standard (Vertical)
All T-LOCK standards incorporate lower fixed cups at 0.5m intervals with captive rotating top cups which secure up to four components. Access standards incorporate a 150mm spigot at the top to allow the vertical connection of further standards. Provision for a locking pin or bolt is also provided.
Maximum load capacity: 55kN
| Lenght (mm) | Weight (kg) |
| 3.0 | 15.3 |
| 2.5 | 13.0 |
| 2.3 | 12.2 |
| 2.0 | 10.6 |
| 1.8 | 9.9 |
| 1.6 | 8.5 |
| 1.5 | 8.2 |
| 1.4 | 7.8 |
| 1.3 | 7.5 |
| 1.0 | 5.8 |
| 0.8 | 5.1 |
| 0.7 | 4.7 |
| 0.6 | 4.4 |
| 0.5 | 3.4 |
